Data Requirements and API Resources

This document is part of the MDE Ed-Fi Vendor and District Test Plan. For details on the API Resources and Certification Scenarios, see the Sandbox Certification Scenarios documentation

API Documentation

For each of the resources described in this document, the elements/properties required are included and browseable in the Sandbox Swagger UI (aka “Swagger”) under the current profile. (More information about Swagger is in the Sandbox Certification Testing document.)

Example

As an example, to view the required resource properties for a studentSchoolAssociation, open the “POST” action in Swagger: POST /ed-fi/studentSchoolAssociations Creates or updates resources based on the natural key values of the supplied resource.

• Note: “ed-fi” in the path above indicates that this is a core resource.

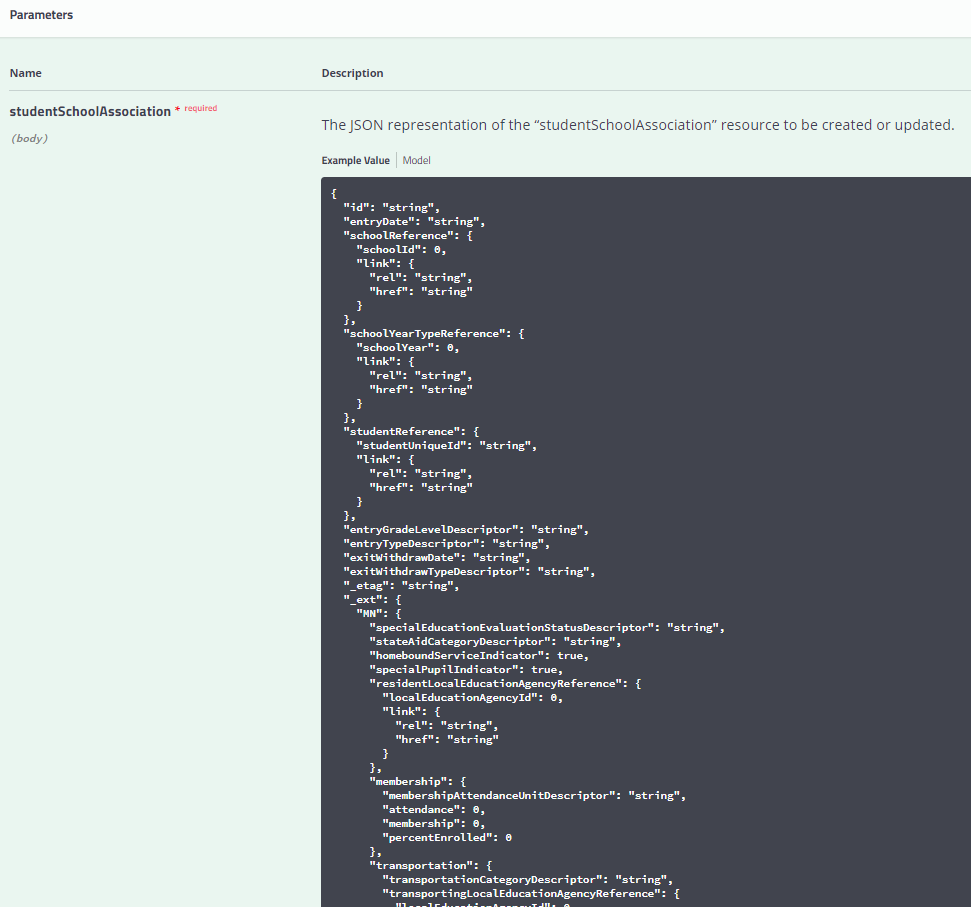

Properties in a studentSchoolAssociation can be viewed as an example/template JSON object by selecting “Example Value”:

Definitions and Data Types in the studentSchoolAssociation can be viewed by selecting “Model” just to the right of the “Example Value” option. Required components are marked with a red *. Often, the actual data posting for an individual record can be much less than what is in the model, as demonstrated in this example record.

Mapping Documentation

For context around how each MDE collection “maps” to the Ed-Fi Data Standard please view the Mapping Matrix spreadsheets published in the “(YYYY-YY School Year) MDE Ed-Fi Documentation” folders at the top of this repository.

Each school year’s Data Mapping Matrix spreadsheet includes the mappings between MDE elements and Ed-Fi core and extension entities and elements, in the Data Elements tab. Whereas previously these spreadsheets also contained tabs for custome descriptor values, those are now accessible within the descriptorTables folder. (See the “AboutDescriptorTables” markdown document within that folder.)

Education Organization Id usage by Resource

Education Organization References in the Ed-Fi API allow an API client to submit either a Local Education Agency, School Id, or PostSecondaryInstitutionId; however the MDE implementation requires that the following identifiers must be used for Education Organization References: | Resource | Element | ID | | ———-|———-|—-| | StudentEducationOrganizationAssociation | educationOrganizationReference.educationOrganizationId | School Id| | studentEducationOrganizationResponsibilityAssociation | reportingEducationOrganizationReference.educationOrganizationId | School Id| | StudentProgramAssociation (all program types) | educationOrganizationReference.educationOrganizationId | School Id | | StudentProgramAssociation (all program types) | programReference.educationOrganizationId | Local Education Agency Id | |Course |educationOrganizationReference.educationOrganizationId|District Course - LocalEducationAgencyId; State Course (loaded by MDE) - StateEducationAgencyId; College Course - postSecondaryInstitutionId| | CourseOffering | SchoolReference; CourseReference | SchoolId; EducationOrganizationId on the Course record | | ClassPeriod | SchoolReference | SchoolId | | Section | CourseOfferingReference; ClassPeriodReference | SchoolId; SchoolId | | studentSectionAssociation | sectionReference.CourseOfferingReference | SchoolId | | StaffSectionAssociation | sectionReference.CourseOfferingReference | SchoolId | | Grade | StudentSectionAssociationReference.sectionReference.CourseOfferingReference | SchoolId | | GradingPeriod | SchoolReference | SchoolId |

API Resources and Certification Scenarios

For details on the current API Resources and Certification Scenarios, see the Sandbox Certification Scenarios documentation. That documentation contains resources and scenarios for the various programs MDE has incorporated into Ed-Fi.

Read-Only API endpoints

Several of the required data elements are provided by MDE within the ODS. This section details those elements. Vendors can pull this data into their SIS databases by using GET requests against the ODS API. (See the Schools section below for details)

Resource: LocalEducationAgencies

Description This entity represents an administrative unit at the local level which exists primarily to operate schools or to contract for educational services. It includes school districts, charter schools, or other local administrative organizations. All required Local Education Agency data are loaded by MDE.

Resource: Schools

Description This entity represents an educational organization that includes staff and students who participate in classes and educational activity groups All required School data are loaded by MDE.

Requesting Schools from the API

GET requests against the API can be used to obtain lists of schools, which can be useful for populating a list of reporting organizations to be used in a Student Education Organization Responsibility Association (see the Joint Powers Certification document).

Some example requests:

• /ed-fi/schools?totalCount=true&limit=50&offset=0 will obtain the first 50 schools in the ODS, and a total count will be returned in the Header of the response. That total count can be used to determine how many paginated requests to make in order to acquire a complete list. (The default limit is 25, and the maximum is 500.)
• /ed-fi/schools?limit=50&offset=0&localEducationAgencyId=616004000 will obtain the first 50 schools for Freshwater Education District 6004-61.

An example JSON response, with some annotations, is below. The response will include the “schoolId”, which is the Ed-Fi style organization ID, which can be further broken down into district type, district number, and school number, as detailed in this section on MN district and school IDs.

{
        "id": "745bfcdfe80a44d0bdeebf881f245266",
        "localEducationAgencyReference": {
            "localEducationAgencyId": 616004000,
            "link": {
                "rel": "LocalEducationAgency",
                "href": "/ed-fi/localEducationAgencies/02da72cce56d4de38d258009501f0f4c"
            }
        },
        "schoolId": 616004030,//Ed-Fi style Organization ID
        "nameOfInstitution": "Freshwater Targeted Services",
        "shortNameOfInstitution": "FRSH TS",
        "webSite": "https://www.fed.k12.mn.us/",
        "addresses": [
            {
 //...contains physical address details
            }
        ],
        "educationOrganizationCategories": [
            {
                "educationOrganizationCategoryDescriptor": "uri://ed-fi.org/EducationOrganizationCategoryDescriptor#School"
            }
        ],
        "identificationCodes": [//full MDE ORG stateOrganizationId
            {
                "educationOrganizationIdentificationSystemDescriptor": "uri://ed-fi.org/EducationOrganizationIdentificationSystemDescriptor#SEA",
                "identificationCode": "616004030000"
            }
        ],
//...
        "_ext": {
            "mn": {
                "schoolClassificationDescriptor": "uri://education.mn.gov/SchoolClassificationDescriptor#45"
            }
        },
        "schoolCategories": [],
        "gradeLevels": [
            {
                "gradeLevelDescriptor": "uri://education.mn.gov/GradeLevelDescriptor#1"
            },
            {
                "gradeLevelDescriptor": "uri://education.mn.gov/GradeLevelDescriptor#5"
            },
            //remaining grade levels...
        ],
        "_etag": "5250059405458521237"
    }

Resource: Post-Secondary Institutions

Description

An organization that provides educational programs for individuals who have completed or otherwise left educational programs in secondary school(s). All required College data are loaded by MDE.

Resource: Course (State Level Only)

Description

This educational entity represents the organization of subject matter and related learning experiences provided for the instruction of students on a regular or systematic basis. The required State Course data are loaded by MDE.

Resource: Staff

Description

This entity represents an individual who performs specified activities for any public or private education institution or agency that provides instructional and/or support services to students or staff at the early childhood level through high school completion. For example, this includes:

1. An “employee” who performs services under the direction of the employing institution or agency is compensated for such services by the employer and is eligible for employee benefits and wage or salary tax withholdings.
2. A “contractor” or “consultant” who performs services for an agreed upon fee or an employee of a management service contracted to work on site.
3. A “volunteer” who performs services on a voluntary and uncompensated basis.
4. An in-kind service provider.
5. An independent contractor or businessperson working at a school site.

A sync process created by MDE is used to populate Staff Tables.

Resource: Program

Description

Ed-Fi Description: This entity represents any program designed to work in conjunction with, or as a supplement to, the main academic program. Programs may provide instruction, training, services, or benefits through federal, state, or local agencies. Programs may also include organized extracurricular activities for students. MDE automatically creates programs for each LEA with the program types identified in the ProgramTypeDescriptor table.

Ed-Fi Model Dependency

Ed-Fi uses a data-dependency security model that enforces the order of creation when inserting various records via the API. This is often encountered via API errors such as the following:

Authorization denied. The claim does not have any established relationships with the requested resource.

The Ed-Fi Alliance calls this type of error “Dependency order enforced by authorization”. More documentation on dependency order by entity relationships or by authorization is available in the Ed-Fi 5.2 tech docs.

Graphs demonstrating the dependencies of various data resources in MDE’s collections are below, and a basic overview PDF of the various MDE collections is available.

MARSS collection

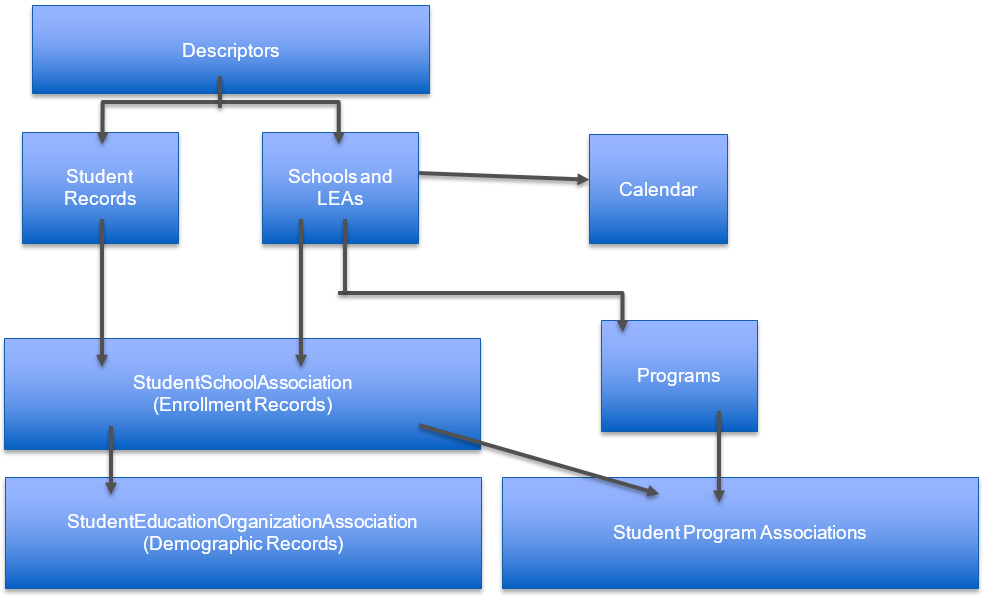

The above image describes the dependencies required to work with the MDE Ed-Fi model as part of MARSS collections. In detail:

1. Descriptors must be loaded first, as all other resources contain references to descriptor values.
2. Once descriptors are loaded, Education Organization data must be loaded by MDE.
3. Though MARSS is centered around student demographics and enrollment, the core Student records must be loaded before students may be enrolled.
4. Student enrollment data must be provided via StudentSchoolAssociation in order to establish a valid security claim before any other updates may be made to student records.
5. Once student enrollment data is loaded, student demographics may be provided via StudentEducationOrganizationAssociation.
6. Programs must be loaded for all districts submitting data to the ODS.
7. StudentProgramAssociations can be loaded once Programs and StudentSchoolAssociations have been loaded.

MCCC Collection

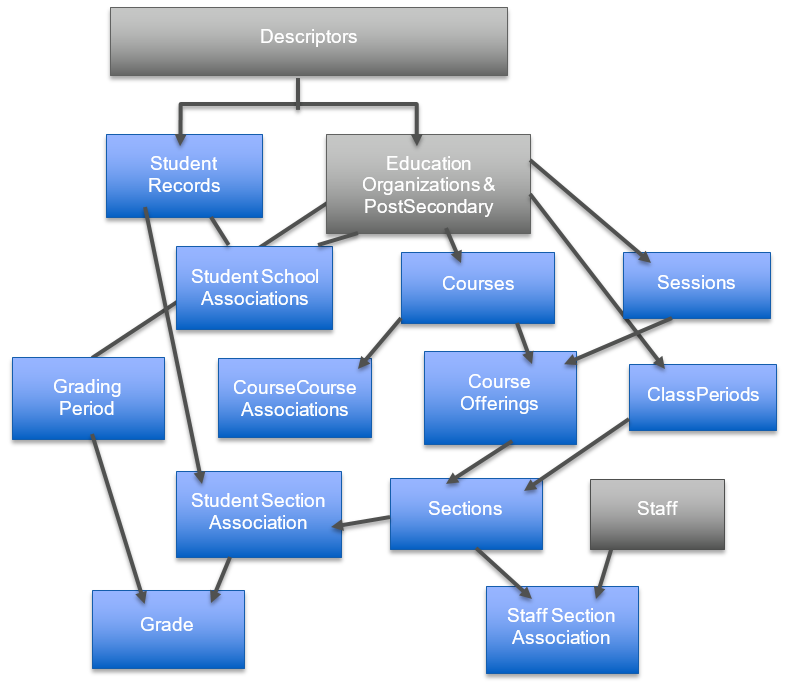

The above image describes the dependencies required to work with the MDE Ed-Fi model as part of the MCCC collection. In detail:

1. Descriptors must be loaded first, as all other resources contain references to descriptor values.
2. Several other dependencies are loaded by MDE:
   • Education Organizations
   • Colleges (in the PostSecondaryInstitution resource)
   • State Courses (associated with the StateEducationAgency)
   • Staff records
3. The core Student records must be loaded before students may be enrolled in courses.
4. Student enrollment data must be provided via StudentSchoolAssociation in order to establish a valid security claim before any other updates may be made to student records.
5. Grading Periods can be created after Education Organizations, and must be created before students can be assigned course grades.
6. Sessions and Class Periods can be loaded after Education Organizations. Sessions must be loaded before Course Offerings, and Class Periods must be loaded before Sections.
7. Courses and CourseCourse Associations can be loaded after Education Organizations.
8. After Courses are created, Course Offerings can be loaded, and then Sections after that.
9. Staff Section Associations, and StudentSectionAssociations can be loaded after Sections.
10. Once Student Section Associations are created, course Grades can be assigned using references to the Grading Periods.

Early Education Enrollment and Parent collection

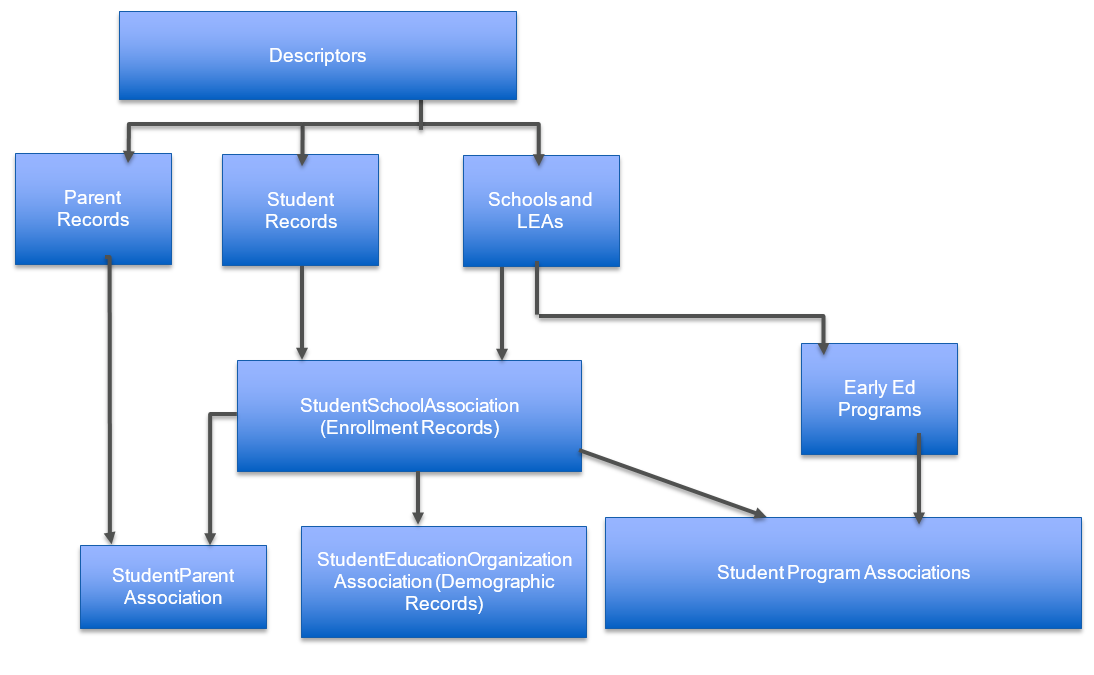

The above image describes the dependencies required to work with the MDE Ed-Fi model as part of Early Education Enrollment and Parent collection. In detail:

1. Descriptors must be loaded first, as all other resources contain references to descriptor values.
2. Once descriptors are loaded, Education Organization data must be loaded by MDE.
3. The core Student records must be loaded before students may be enrolled.
4. Student enrollment data must be provided via StudentSchoolAssociation in order to establish a valid security claim before any other updates may be made to student records. (See more details below.)
5. Once student enrollment data is loaded, student demographics may be provided via StudentEducationOrganizationAssociation.
6. Early Education Programs must be loaded for all districts submitting data to the ODS.
7. StudentProgramAssociations can be loaded once Programs and StudentSchoolAssociations have been loaded.
8. Parent Records, Students and Enrollment records are required prior to setting the Student Parent Association.

Grade / Enrollment Requirements for Early Education Enrollment

As described above, each student must first have a StudentSchoolAssociation record (an enrollment record). Starting in SY2023-24, all EE enrollments used grade ‘EE’ due to the resolution described in the EE-MARSS conflict resolution document.
